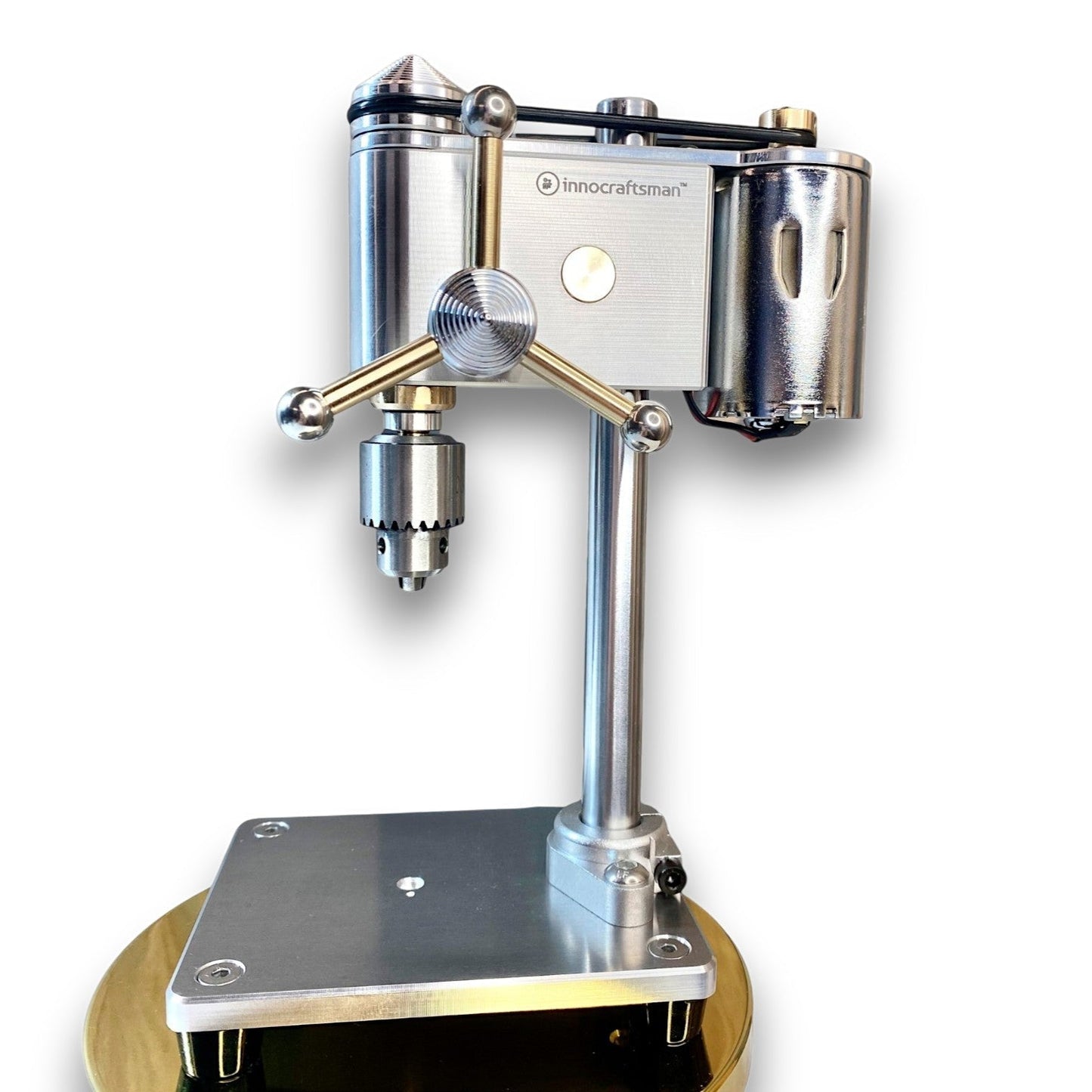

Mini Drill Press

£101.95 GBP

Sale Sold out

Taxes included.

Selected model: Universal chuck (0.3-4mm clamp) Сollet chuck (3.175mm clamp) PowerPro 24v Universal chuck (0.3-6.5mm with Synchronous Belt) PowerPro with Micrometer

PERFECT FOR PRECISION WORK

Ideal for tasks requiring fine detail and accuracy, such as watch repair, printed circuit board drilling, jewelry making and more. A must-have tool for both hobbyists and professionals!

COMPLETELY STABLE DRILLING

HIGH-PRECISION DRILLING WITH NO BIT RUNOUT

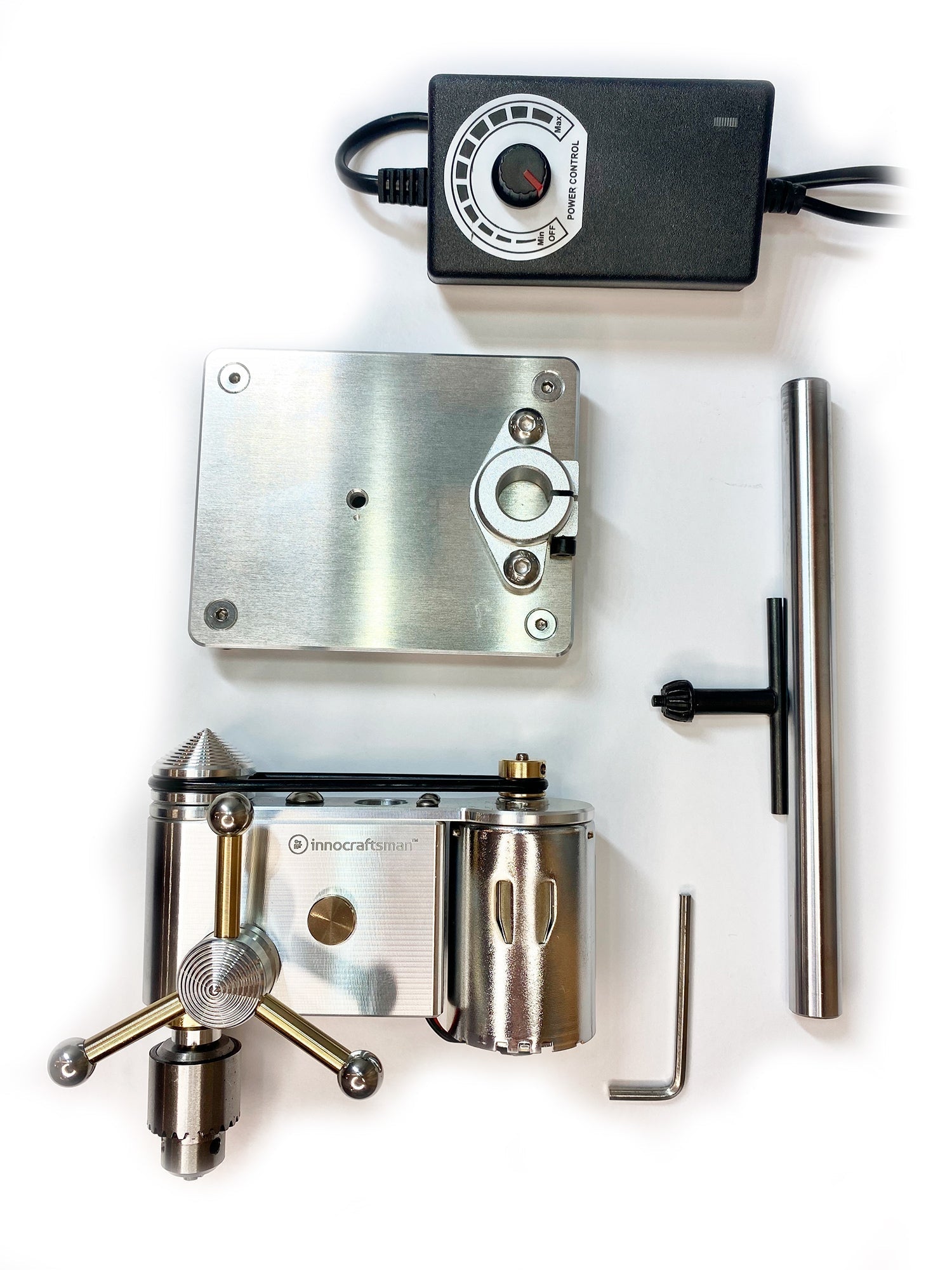

HOW TO ASSEMBLE AND USE

AVAILABLE IN 4 VERSIONS:

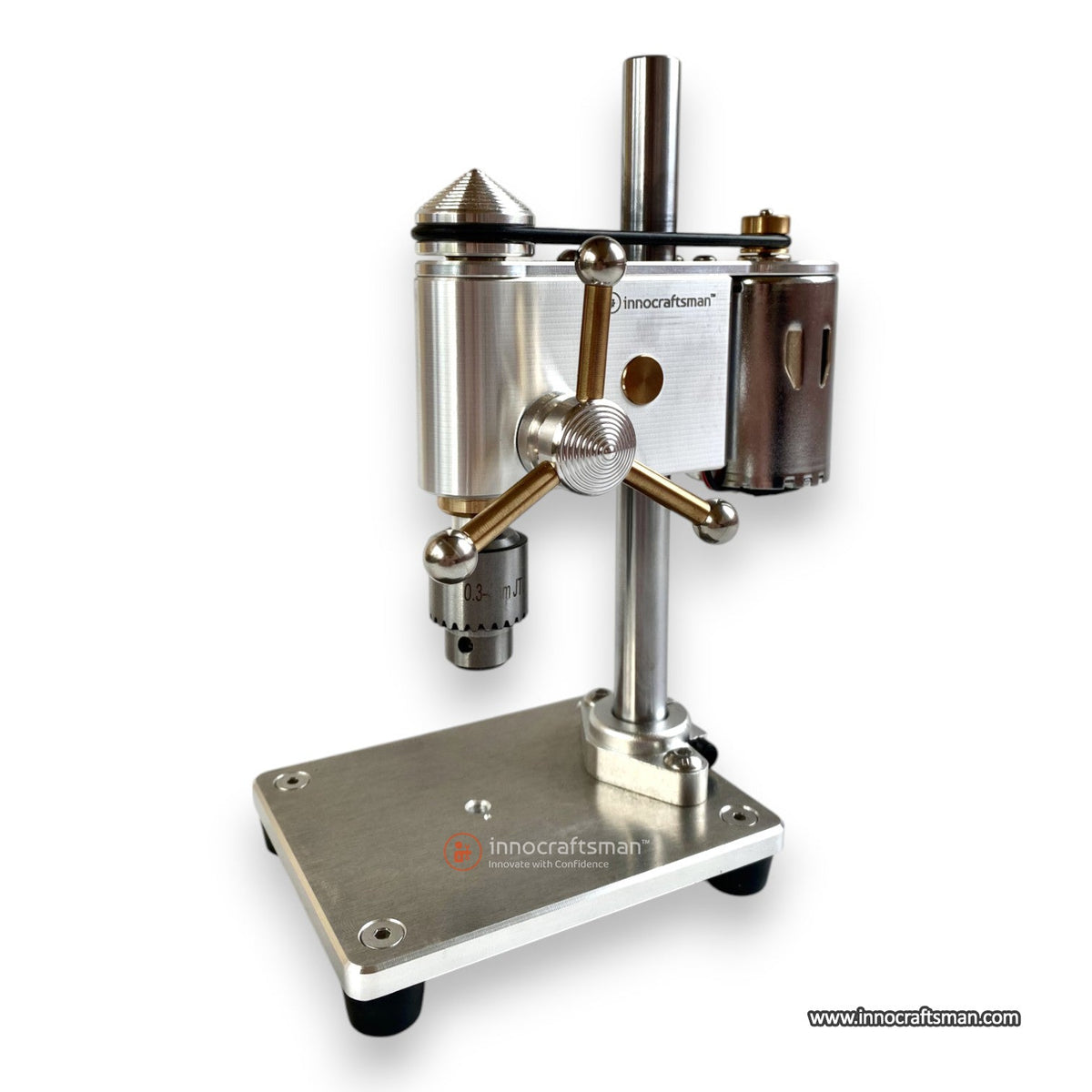

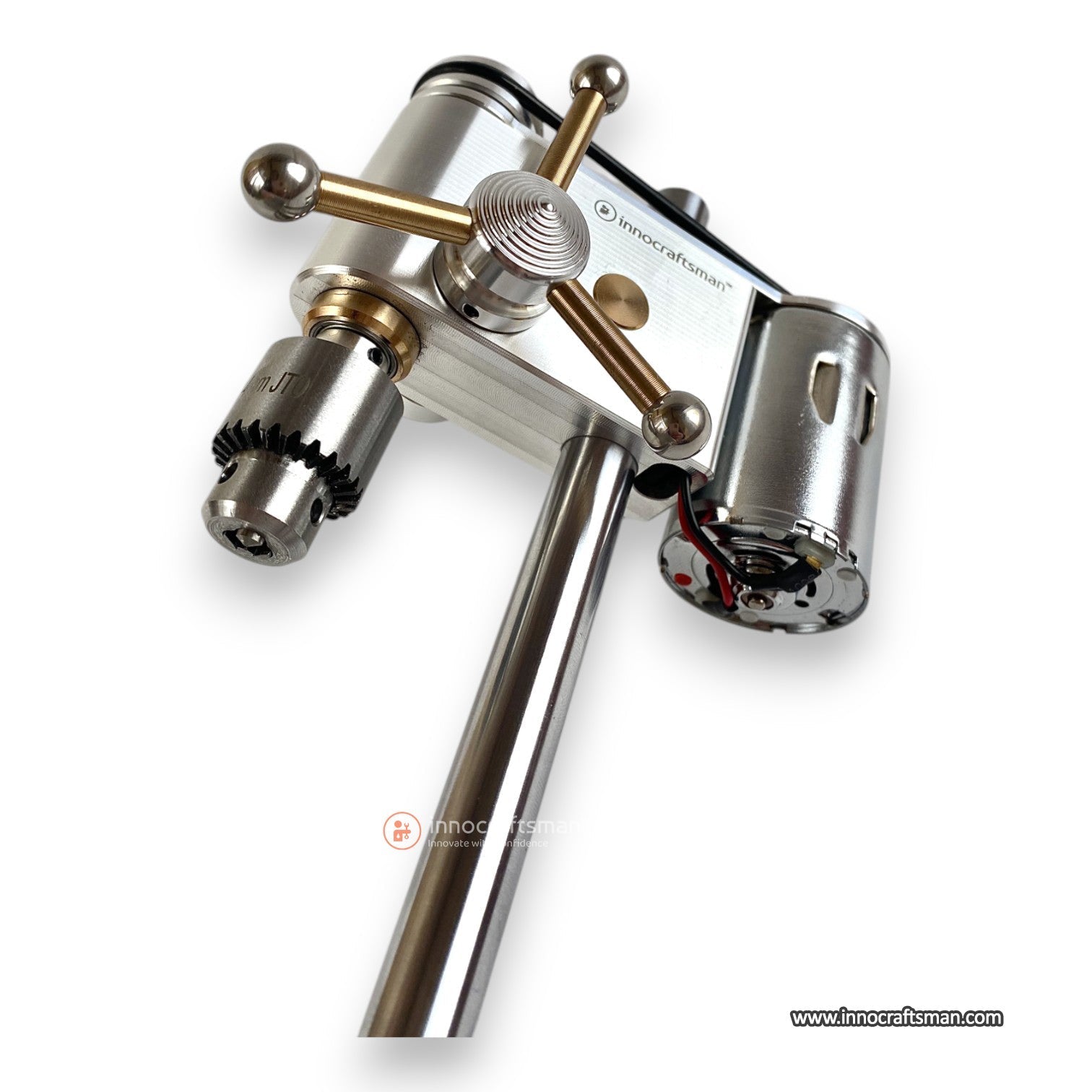

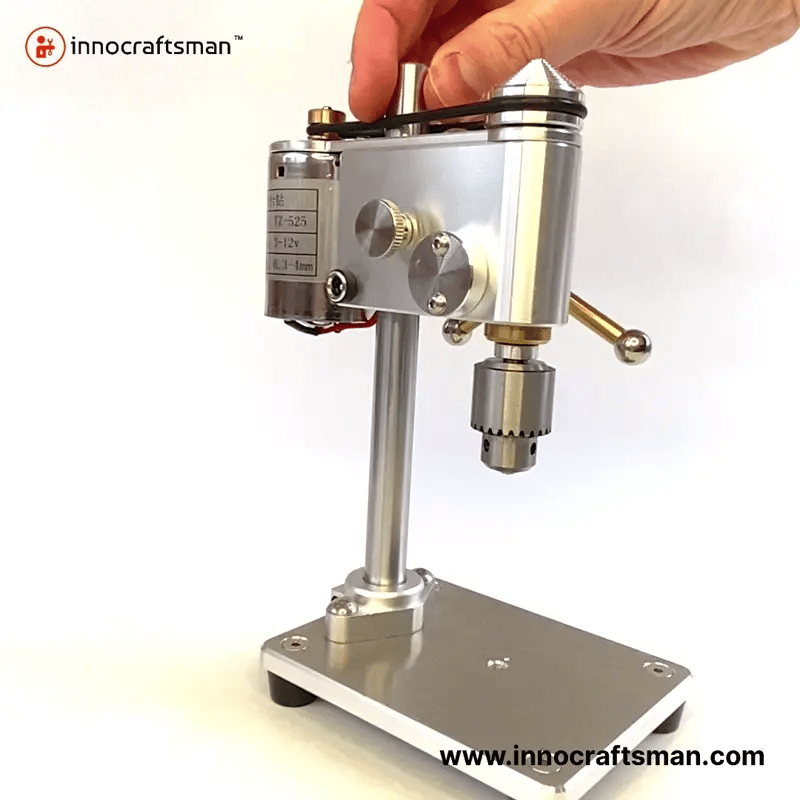

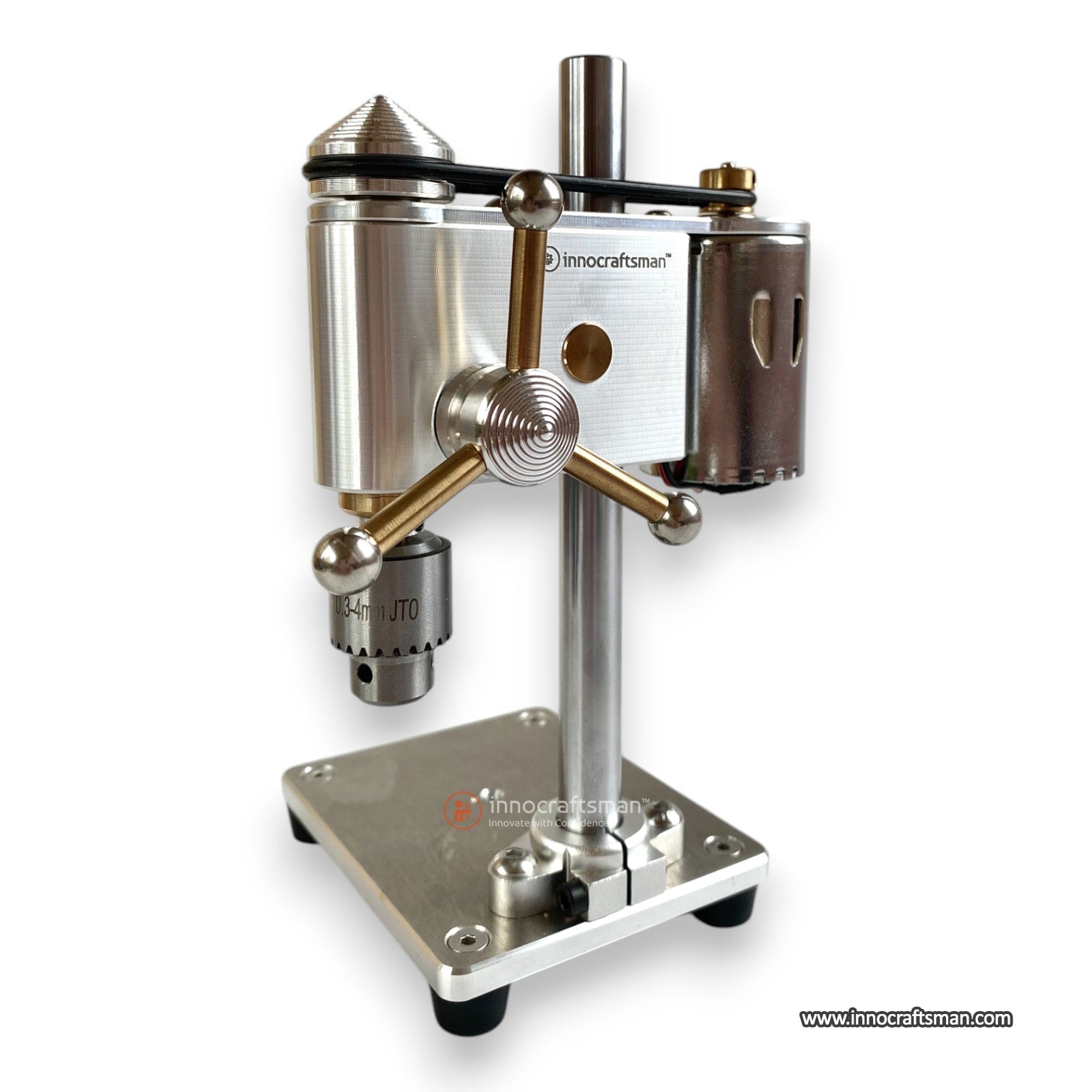

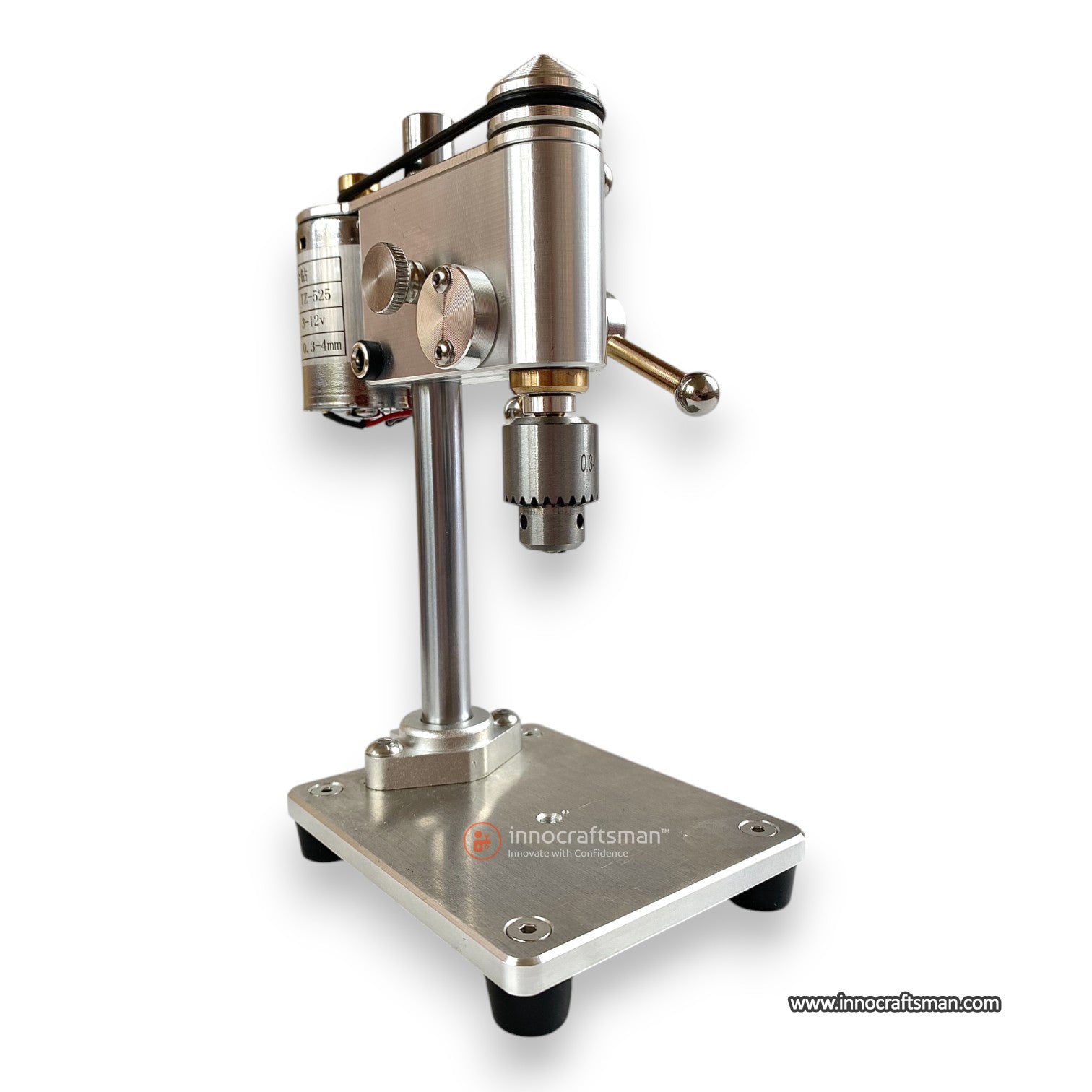

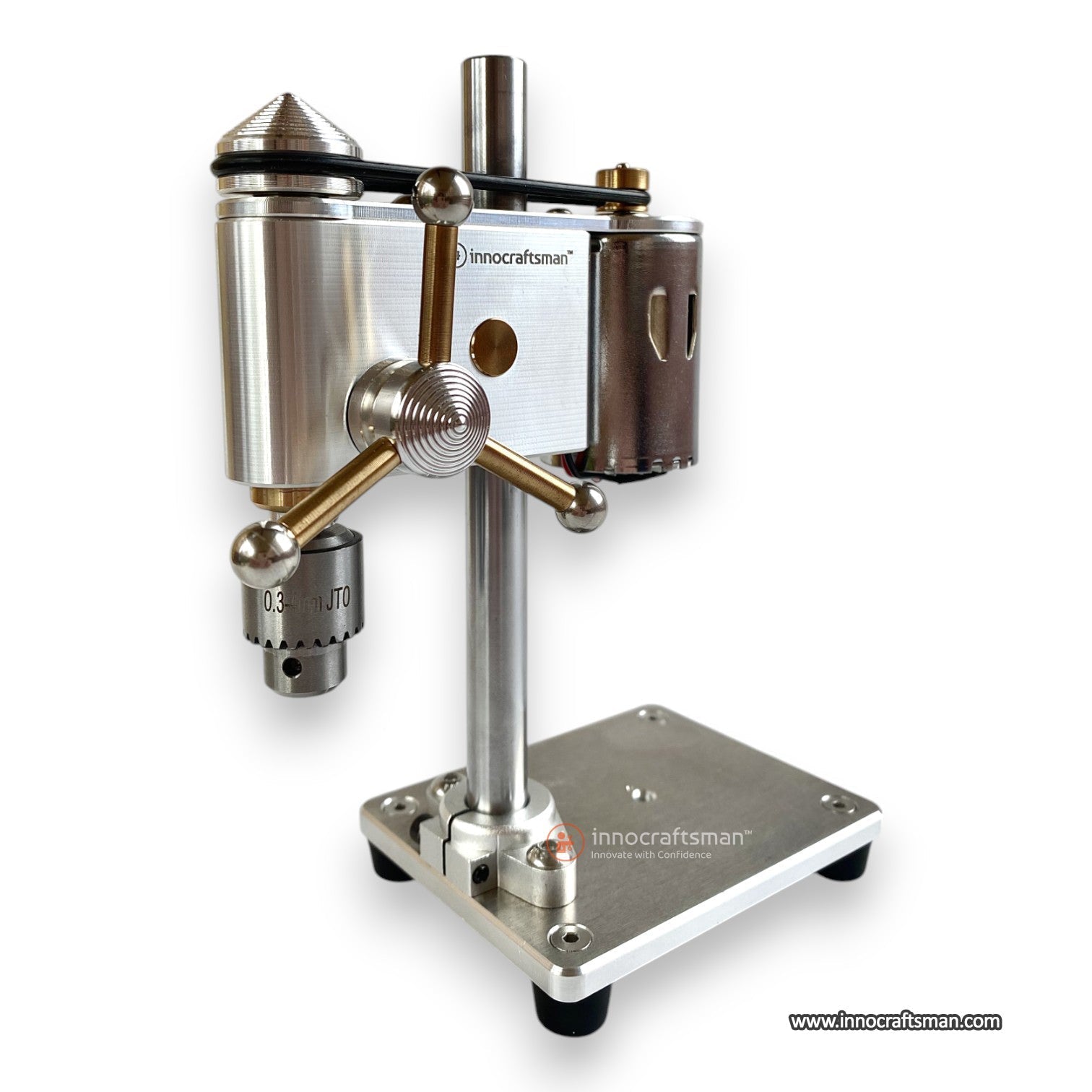

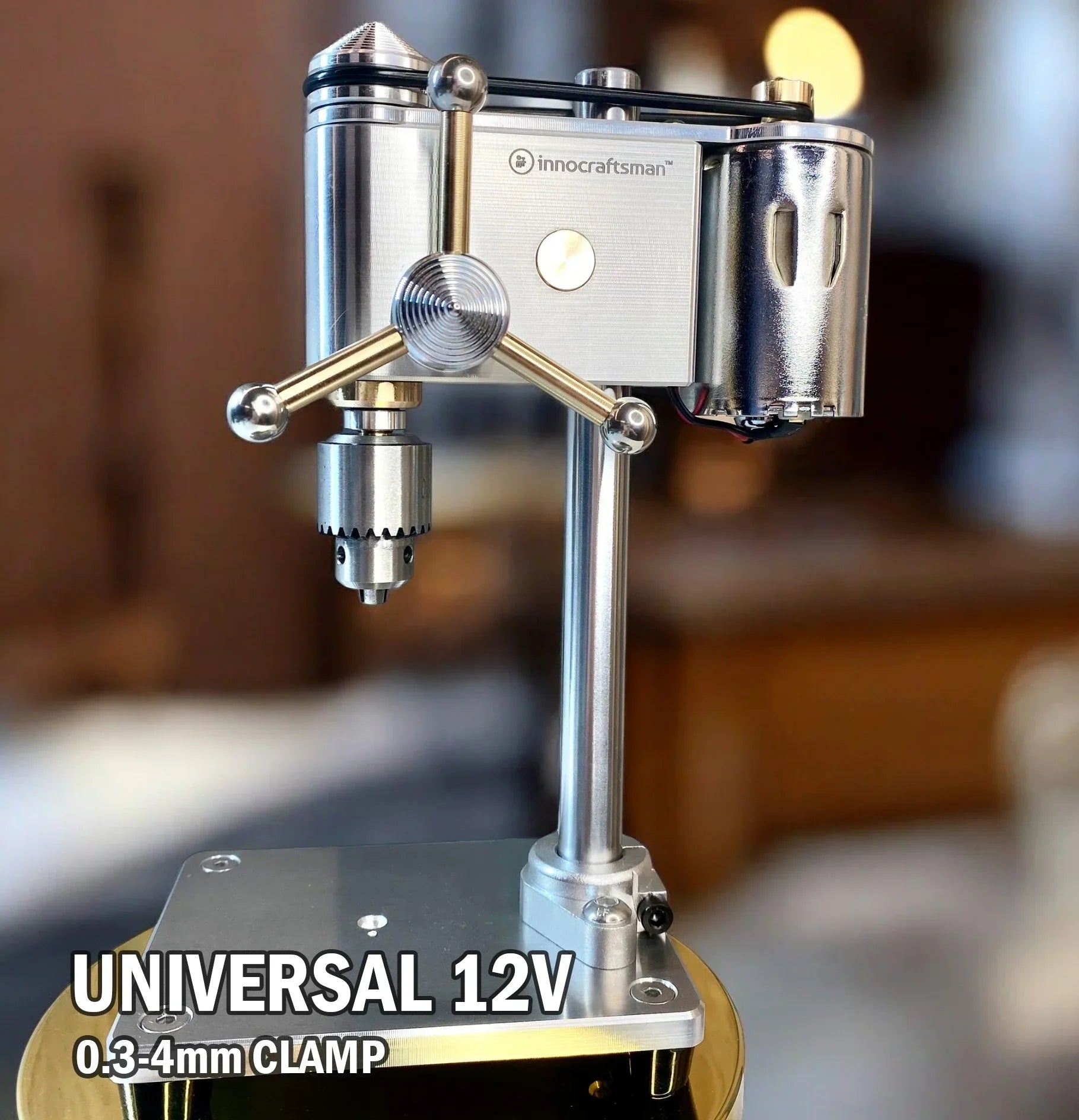

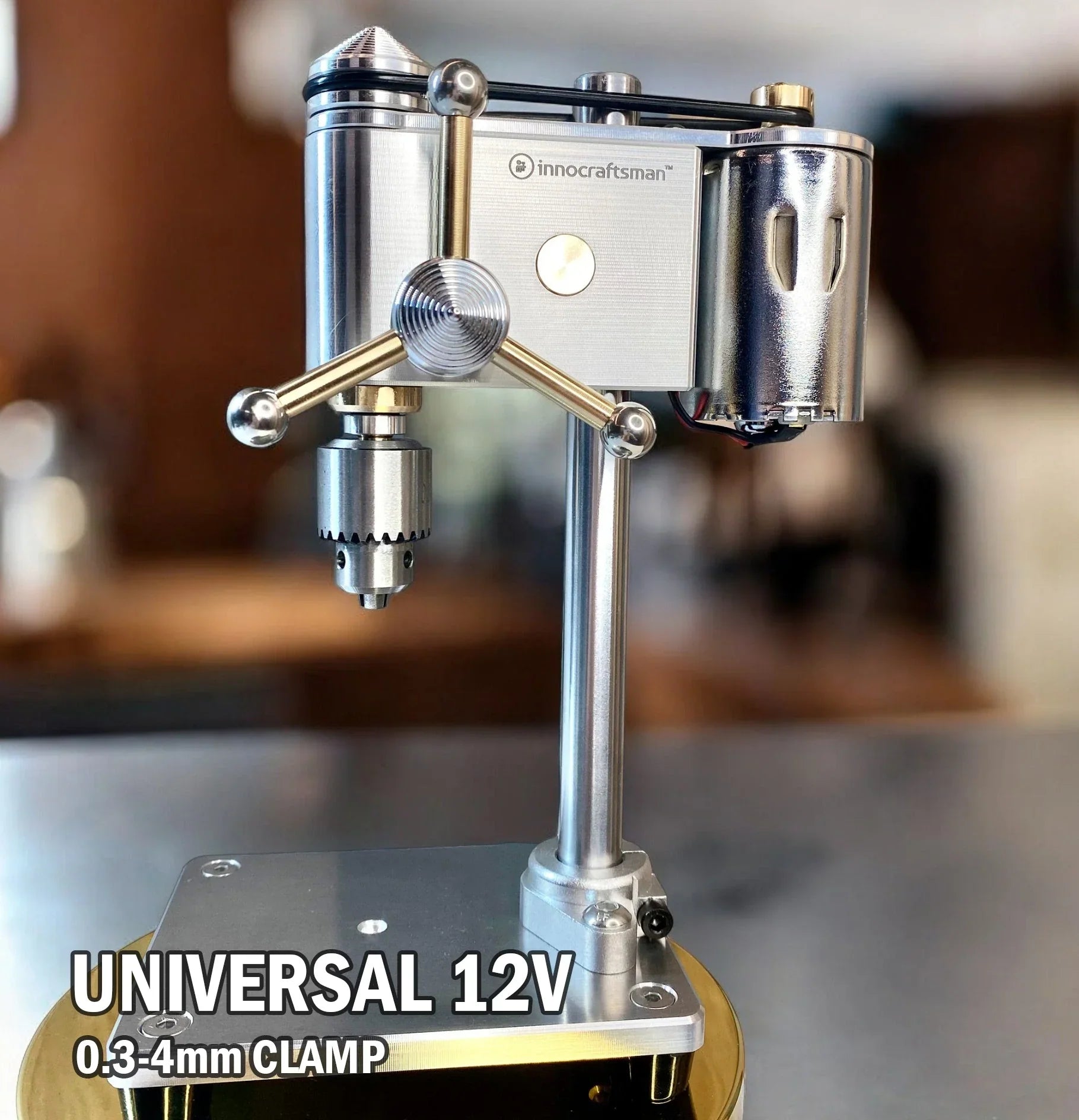

UNIVERSAL 0.3-4mm 12V MODEL:

This option offers a wider clamping range 0.3-4mm and has an accuracy of approximately 0.05mm, making it versatile for various drill bit sizes

Specification:

Belt type: rubber belt
Clamping range: 0.3-4mm
Drill runout: 0.05mm
Product size: 100 * 80 * 180mm
Max clearance between drill chuck and base: 100mm
Weight: 800g
Column Diameter: 13mm
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
Drilling stroke: 13mm
Height to workbench: 70mm
Power supply (included): 3-12v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

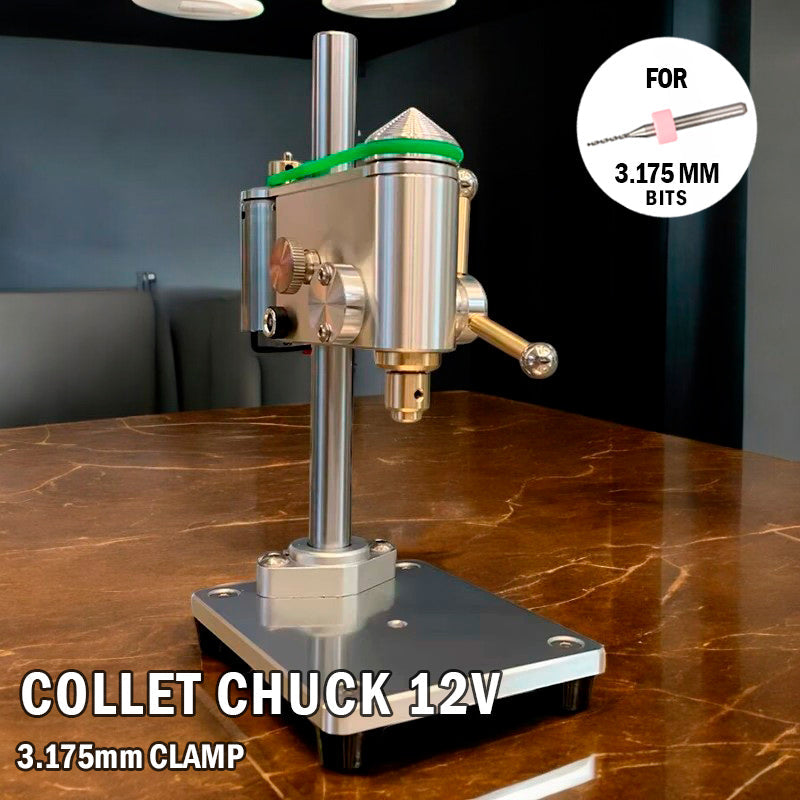

Collet 3.175mm 12V MODEL:

This model is specifically designed for drill bits with a shank diameter of 3.175mm (like this one). It provides higher precision with an accuracy of within 0.02mm, ensuring stable and accurate drilling, ideal for delicate tasks like watch repair.

Specification:

Belt type: rubber belt
Clamp: 3.175mm
Drill runout: 0.02mm
Product size: 100 * 80 * 180mm
Max clearance between drill chuck and base: ~100mm
Weight: 800g
Column Diameter: 13mm
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
Drilling stroke: 13mm
Height to workbench: 70mm
Power supply (included): 3-12v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

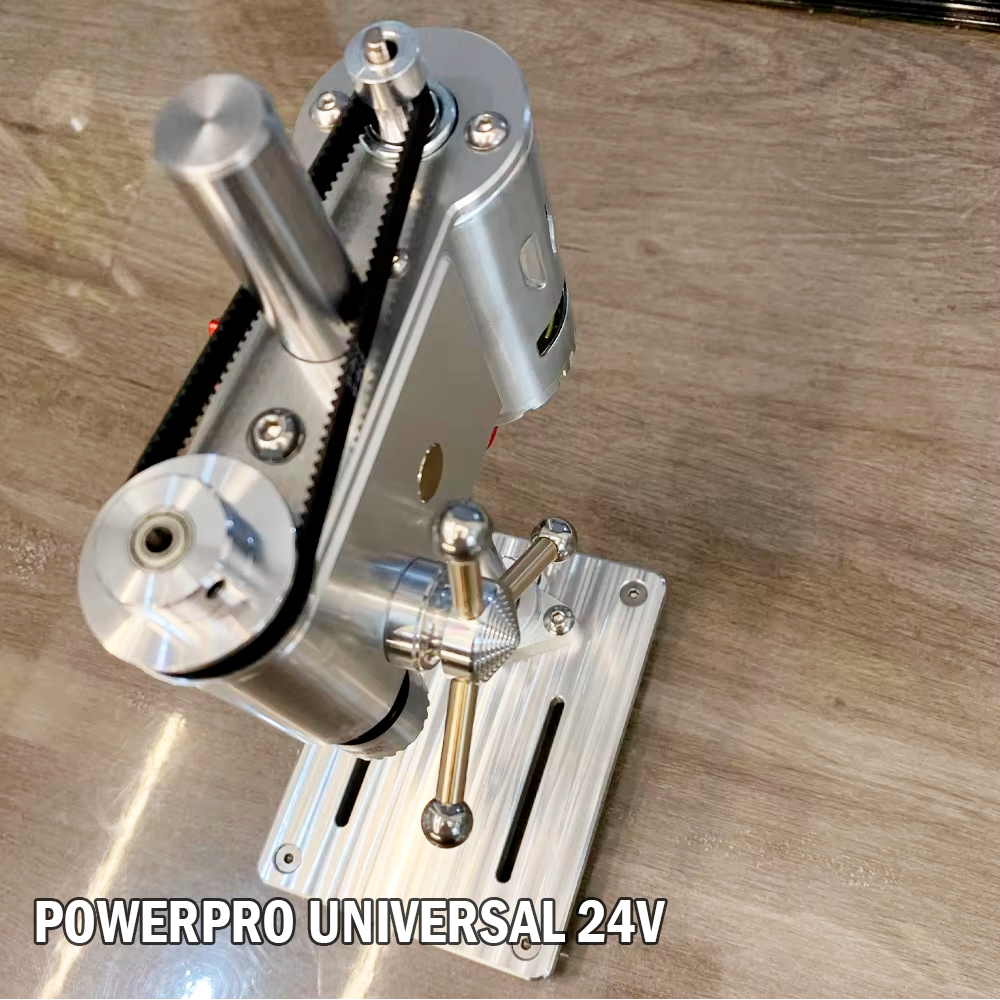

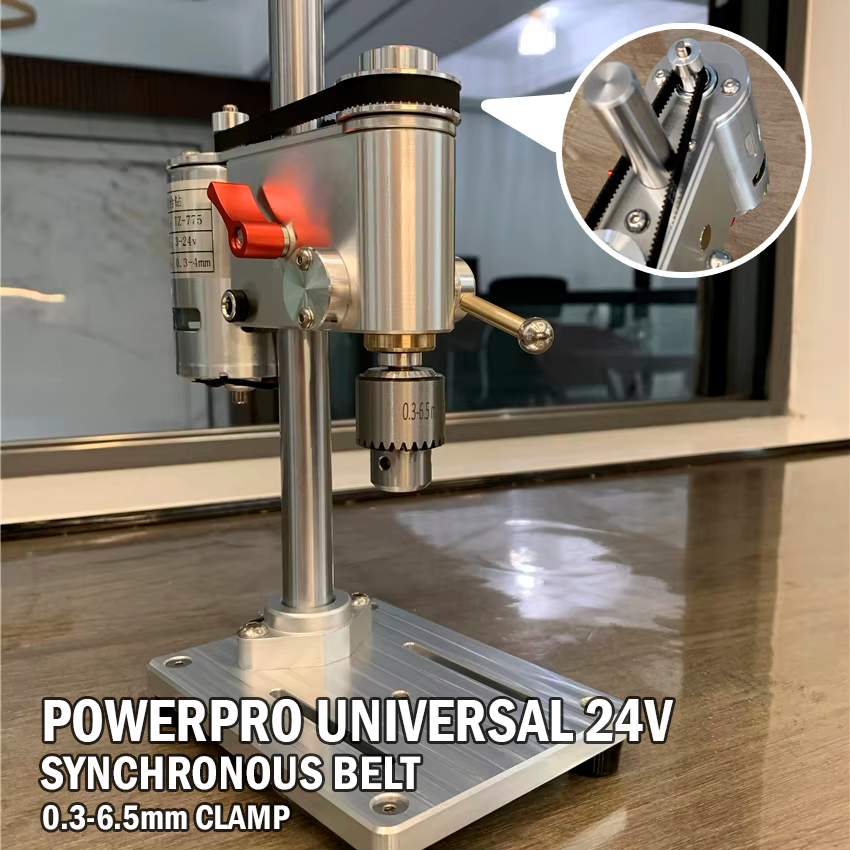

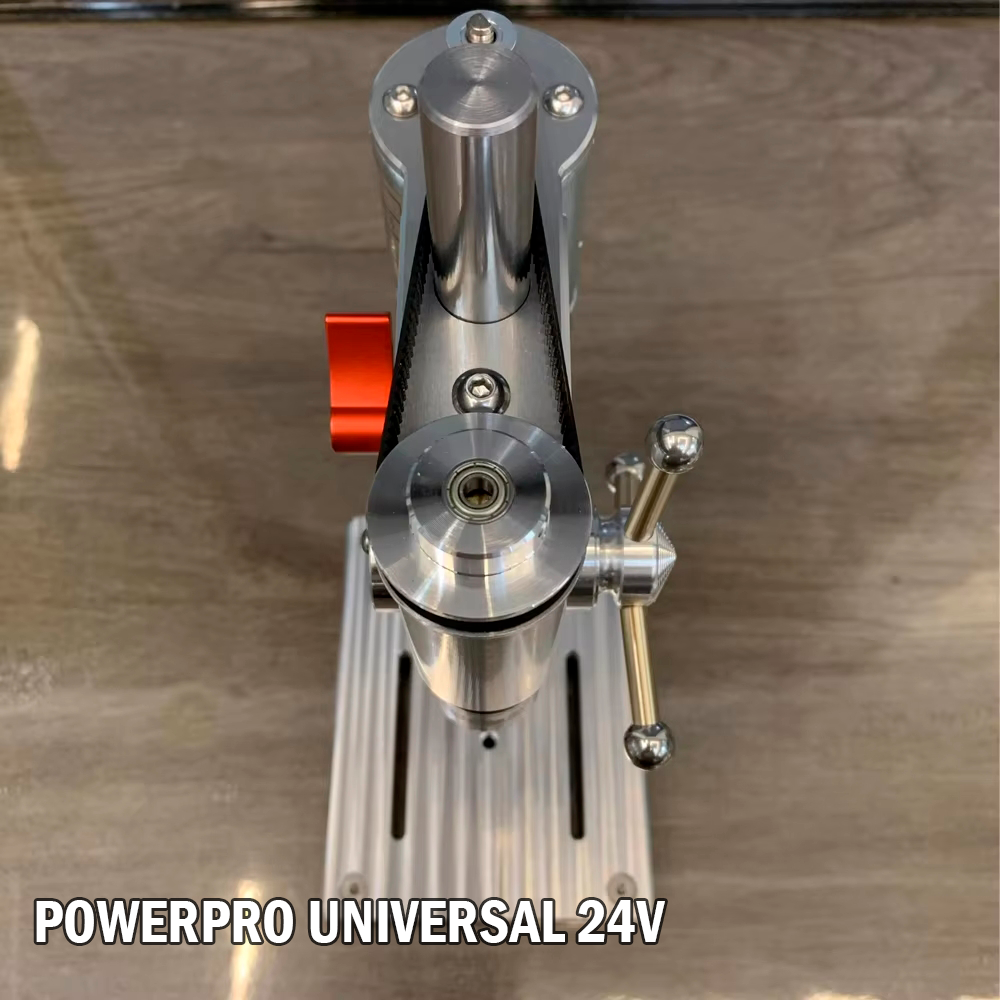

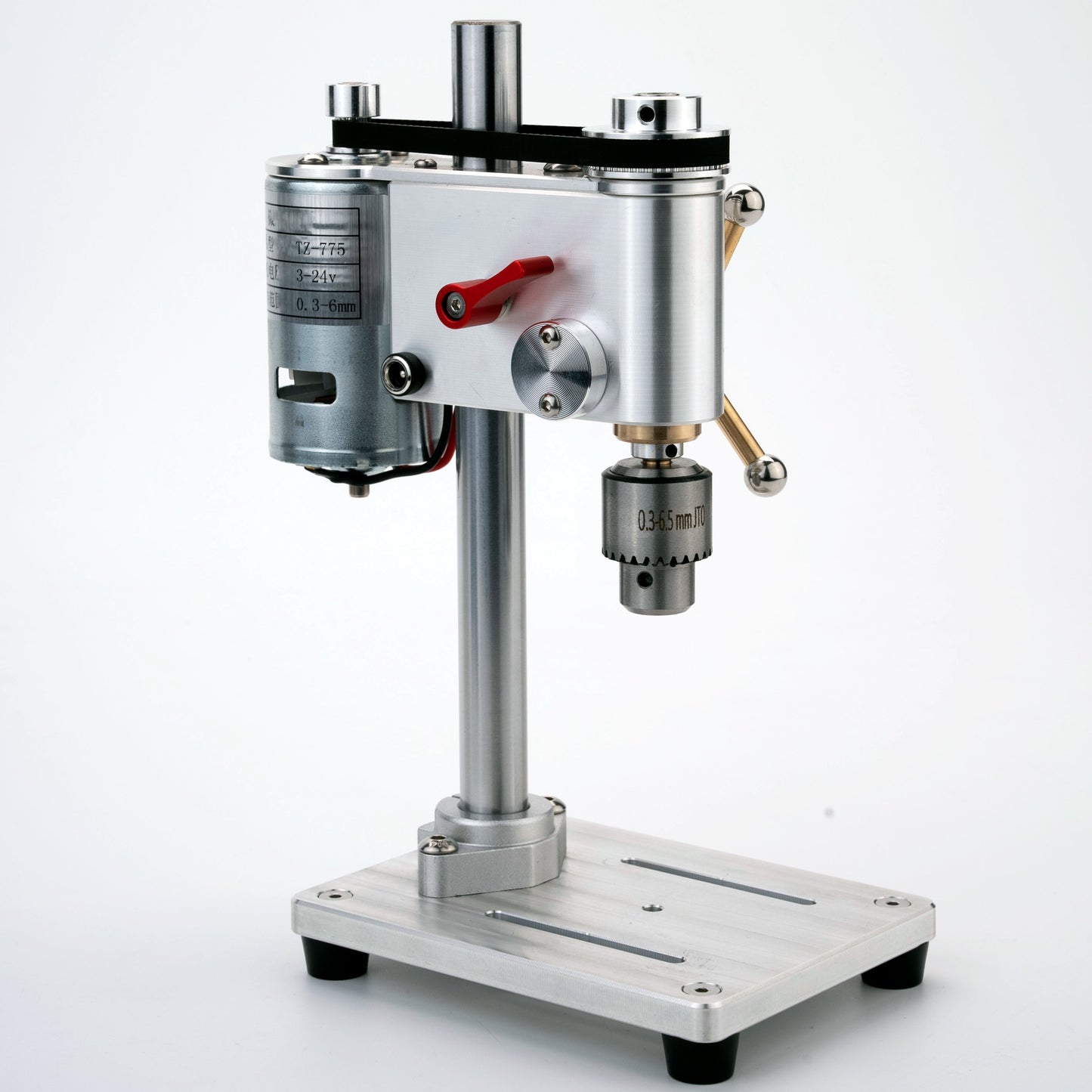

PowerPro UNIVERSAL 24v (Synchronous Belt) MODEL:

It’s built for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive. With a voltage range from 3 to 24V and a clamping range of 0.3 to 6.5mm, this tool is ideal for precision work as well as demanding projects.

Specification:

Belt type: synchronous belt
Clamping range: 0.3-6.5mm
Drill runout: 0.05mm
Product size: 120 * 90 * 200mm
Max clearance between drill chuck and base: ~120mm
Weight: 1300g
Column Diameter: 16mm
Column (Rod) Length: 200mm (extended 230mm rod is available separately)
Drilling stroke: 19mm
Height to workbench: 70mm
Power supply (included): 3-24v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

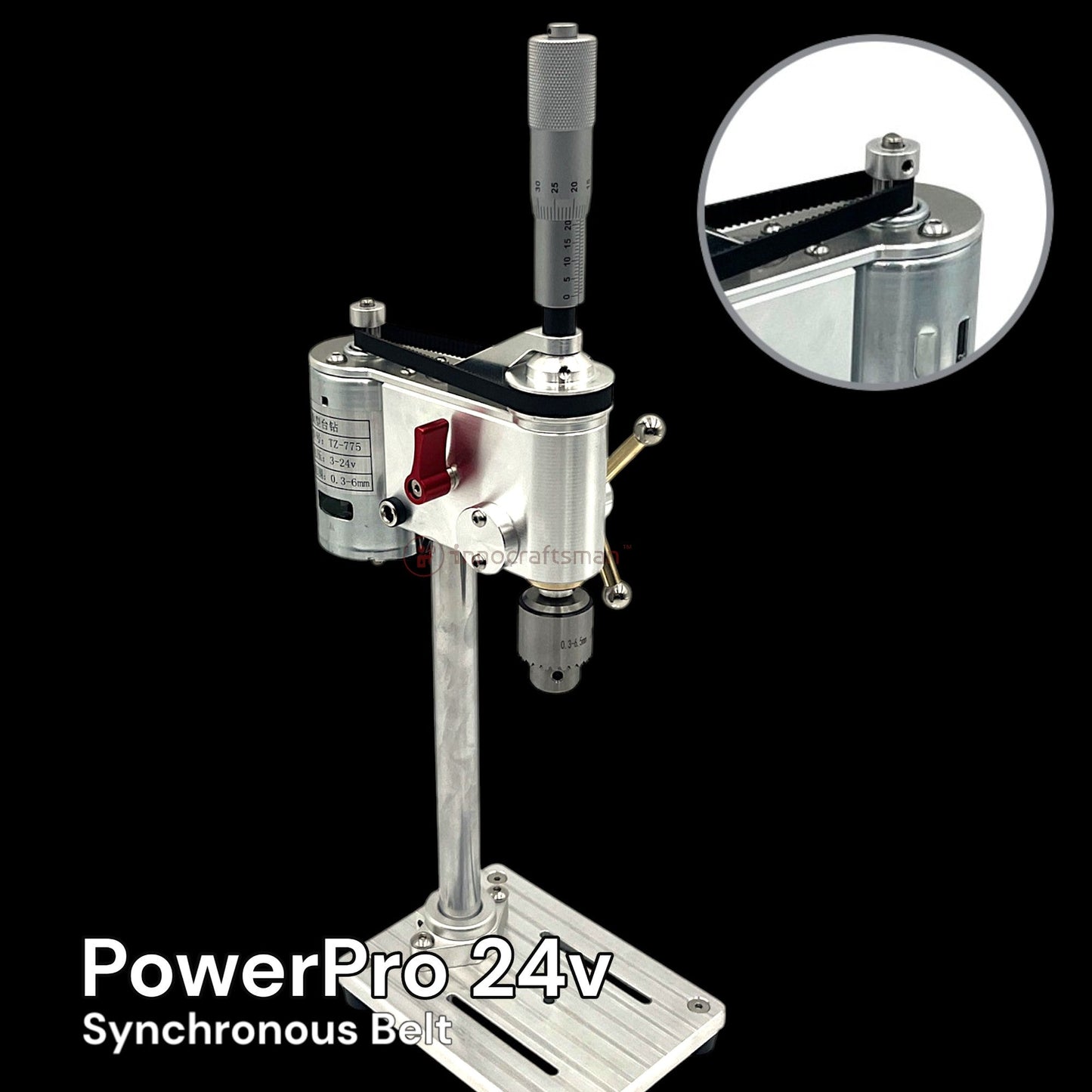

PowerPro 24v with Micometer:

It’s built for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive. With a voltage range from 3 to 24V and a clamping range of 0.3 to 6mm, this tool is ideal for precision work as well as demanding projects.
